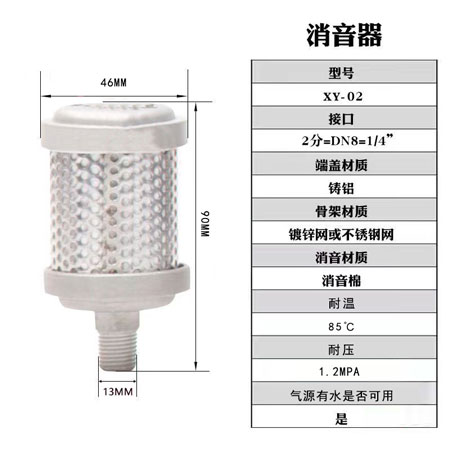

消音器XY-02尺寸参数

上一张　下一张

型号	接口尺寸Z	总高H	肩高h	直径D
XY-05	1/2”	159	125	Φ80
XY-07	3/4”	180	156	Φ87
XY-10	1”	218	183	Φ99
XY-12	1 1/4”	218	183	Φ99
XY-15	1 1/2”	340	297	Φ133
XY-20	2”	470	432	Φ133
XY-30	3”	588	467	Φ173×4
XY-60	6”	790	619	Φ275×4

排气消声器Air Exhaust Muffler

Connection Thread Types							Dimensions
Conn Size	Male NPT		Female NPS		Male BSPT		Diameter		Length		Replacement Element
Conn Size	Model Type	Item Number	Model Type	Item Number	Model Type	Item Number	Diameter		Male	Female	Replacement Element
Single Chamber
1/8	M01	0111001	N01	0211001	B01	0121001	1.84		3.12	2.81	0911001
1/4	M02	0111002	N02	0211002	B02	0121002	1.84		4.37	4.00	0911002
3/8	M00	0111000	N00	0211000	B00	0121000	2.59		5.12	4.56	0911000
1/2	M05	0111005	N05	0211005	B05	0121005	3.15		6.00	5.50	0911005
3/4	M07	0111007	N07	0211007	B07	0121007	3.40		7.18	6.68	0911007
1	M10	0111010	N10	0211010	B10	0121010	3.90		8.75	7.92	0911010
1-1/4	M12	0111012	N12	0211012	B12	0121012	3.90		8.75	8.00	0911012
1-1/2	M15	0111015	N15	0211015	B15	0121015	5.25		13.56	12.50	0911015
2	M20	0111020	N20	0211020	B20	0121020	5.25		18.87	17.75	0911020
Multi Chamber
3	M30	0111030	–	–	B30	012103	7.00		22.93	–	0911030
4	M40	0111040	–	–	B40	0121040	8.00		23.56	–	0911040
6	M60	0111060	–	–	B60	0121060	11.00		30.93	–	0911060

安全阀消音器Relief Valve Mufflers

Connection Thread Types							Dimensions
Conn Size	Male NPT		Female NPS		Male BSPT		Diameter		Length		Replacement Element
Conn Size	Model Type	Item Number	Model Type	Item Number	Model Type	Item Number	Diameter		Male	Female	Replacement Element
Single Chamber
1/8	X01	0312001	R01	0412001	X01	0322001	1.84		3.12	2.81	0911001
1/4	X02	0312002	R02	0412002	X02	0322002	1.84		4.37	4.00	0911002
3/8	X00	0312000	R00	0412000	X00	0322000	2.59		5.12	4.56	0911000
1/2	X05	0312005	R05	0412005	X05	0322005	3.15		6.00	5.50	0911005
3/4	X07	0312007	R07	0412007	X07	0322007	3.40		7.18	6.68	0911007
1	X10	0312010	R10	0412010	X10	0322010	3.90		8.75	7.92	0911010
1-1/4	X12	0312012	R12	0412012	X12	0322012	3.90		8.75	8.00	0911012
1-1/2	X15	0312015	R15	0412015	X15	0322015	5.25		13.56	12.50	0911015
2	X20	0312020	R20	0412020	X20	0322020	5.25		18.87	17.75	0911020
Multi Chamber
3	X30	0312030	–	–	X30	0322030	7.00		22.93	–	0911030
4	X40	0312040	–	–	X40	0322040	8.00		23.56	–	0911040
6	X60	0312060	–	–	X60	0322060	11.00		30.93	–	0911060

空气干燥器消音器Air Dryer Mufflers

Connection Thread Types							Dimensions
Conn Size	Male NPT		Female NPS		Male BSPT		Diameter		Length		Replacement Element
Conn Size	Model Type	Item Number	Model Type	Item Number	Model Type	Item Number	Diameter		Male	Female	Replacement Element
Single Chamber
1/8	X01	0375001	R01	0475001	X01	0325001	1.84		3.12	2.81	0941001
1/4	X02	0375002	R02	0475002	X02	0325002	1.84		4.37	4.00	0941002
3/8	X00	0375000	R00	0475000	X00	0325000	2.59		5.12	4.56	0941000
1/2	X05	0375005	R05	0475005	X05	0325005	3.15		6.00	5.50	0941005
3/4	X07	0375007	R07	0475007	X07	0325007	3.40		7.18	6.68	0941007
1	X10	0375010	R10	0475010	X10	0325010	3.90		8.75	7.92	0941010
1-1/4	X12	0375012	R12	0475012	X12	0325012	3.90		8.75	8.00	0941012
1-1/2	X15	0375015	R15	0475015	X15	0325015	5.25		13.56	12.50	0941015
2	X20	0375020	R20	0475020	X20	0325020	5.25		18.87	17.75	0941020
Multi Chamber
3	X30	0375030	–	–	X30	0325030	7.00		22.93	–	0941030
4	X40	0375040	–	–	X40	0325040	8.00		23.56	–	0941040
6	X60	0375060	–	–	X60	0325060	11.00		30.93	–	0941060

真空泵排气消声器Vacuum Pump Exhaust Mufflers

Connection Thread Types					Dimensions
Conn Size	Model Type	Male NPT	Female NPS	Male BSPT	Diameter	Length		Replacement Element
Conn Size	Model Type	Item Number	Item Number	Item Number	Diameter	Male	Female	Replacement Element
Single Chamber
1/8	V01	0112001	0212001	0122001	1.84	3.12	2.81	0911001
1/4	V02	0112002	0212002	0122002	1.84	4.37	4.00	0911002
3/8	V00	0112000	0212000	0122000	2.59	5.12	4.56	0911000
1/2	V05	0112005	0212005	0122005	3.15	6.00	5.50	0911005
3/4	V07	0112007	0212007	0122007	3.40	7.18	6.68	0911007
1	V10	0112010	0212010	0122010	3.90	8.75	7.92	0911010
1-1/4	V12	0112012	0212012	0122012	3.90	8.75	8.00	0911012
1-1/2	V15	0112015	0212015	0122015	5.25	13.56	12.50	0911015
2	V20	0112020	0212020	0122020	5.25	18.87	17.75	0911020
Multi Chamber
3	V30	0112030	–	0122030	7.00	22.93	–	0911030
4	V40	0112040	–	0122040	8.00	23.56	–	0911040
6	V60	0112060	–	0122060	11.00	30.93	–	0911060

过滤器消音器Filter Silencers

Connection Thread Types					Dimensions
Conn Size	Model Type	Male NPT	Female NPS	Male BSPT	Diameter	Length		Replacement Element
Conn Size	Model Type	Item Number	Item Number	Item Number	Diameter	Male	Female	Replacement Element
Single Chamber
1/8	F01	0113001	0213001	0123001	1.84	3.12	2.81	0931001
1/4	F02	0113002	0213002	0123002	1.84	4.37	4.00	0931002
3/8	F00	0113000	0213000	0123000	2.59	5.12	4.56	0931000
1/2	F05	0113005	0213005	0123005	3.15	6.00	5.50	0931005
3/4	F07	0113007	0213007	0123007	3.40	7.18	6.68	0931007
1	F10	0113010	0213010	0123010	3.90	8.75	7.92	0931010
1-1/4	F12	0113012	0213012	0123012	3.90	8.75	8.00	0931012
1-1/2	F15	0113015	0213015	0123015	5.25	13.56	12.50	0931015
2	F20	0113020	0213020	0123020	5.25	18.87	17.75	0931020
Multi Chamber
3	F30	0113030	–	0123030	7.00	22.93	–	0931030
4	F40	0113040	–	0123040	8.00	23.56	–	0931040
6	F60	0113060	–	0123060	11.00	30.93	–	0931060

排汽消声器Steam Exhaust Mufflers

Connection Thread Types							Dimensions
Conn Size	Male NPT		Female NPS		Male BSPT		Diameter	Length		Replacement Element
Conn Size	Model Type	Item Number	Model Type	Item Number	Model Type	Item Number	Diameter	Male	Female	Replacement Element
Single Chamber
1/8	S01	0114001	Z01	0214001	S01	0124001	1.84	3.12	2.81	0951001
1/4	S02	0114002	Z02	0214002	S02	0124002	1.84	4.37	4.00	0951002
3/8	S00	0114000	Z00	0214000	S00	0124000	2.59	5.12	4.56	0951000
1/2	S05	0114005	Z05	0214005	S05	0124005	3.15	6.00	5.50	0951005
3/4	S07	0114007	Z07	0214007	S07	0124007	3.40	7.18	6.68	0951007
1	S10	0114010	Z10	0214010	S10	0124010	3.90	8.75	7.92	0951010
1-1/4	S12	0114012	Z12	0214012	S12	0124012	3.90	8.75	8.00	0951012
1-1/2	S15	0114015	Z15	0214015	S15	0124015	5.25	13.56	12.50	0951015
2	S20	0114020	Z20	0214020	S20	0124020	5.25	18.87	17.75	0951020
Multi Chamber
3	S30	0114030	–	–	S30	0124030	7.00	22.93	–	0951030
4	S40	0114040	–	–	S40	0124040	8.00	23.56	–	0951040
6	S60	0114060	–	–	S60	0124060	11.00	30.93	–	0951060

直通式消声器Thru Flow Mufflers

Connection Thread Types					Dimensions
Conn Size	Model Type	Male NPT	Female NPS	Male BSPT	Diameter	Length		Replacement Element
Conn Size	Model Type	Item Number	Item Number	Item Number	Diameter	Male	Female	Replacement Element
Single Chamber
1/8	T01	0319001	0419001	0329001	1.84	3.87	2.90	0911001
1/4	T02	0319002	0419002	0329002	1.84	5.31	4.15	0911002
3/8	T00	0319000	0419000	0329000	2.59	6.00	4.78	0911000
1/2	T05	0319005	0419005	0329005	3.15	7.00	5.78	0911005
3/4	T07	0319007	0419007	0329007	3.40	8.25	6.96	0911007
1	T10	0319010	0419010	0329010	3.90	10.31	8.34	0911010
1-1/4	T12	0319012	0419012	0329012	3.90	10.37	8.46	0911012
1-1/2	T15	0319015	0419015	0329015	5.25	15.37	13.03	0911015
2	T20	0319020	0419020	0329020	5.25	20.75	18.23	0911020
Multi Chamber
3	T30	0319030	–	0329030	7.00	29.31	–	0911030
4	T40	0319040	–	0329040	8.00	30.06	–	0911040
6	T60	0319060	–	0329060	11.00	39.81	–	0911060

除雾器消音器Defogger Mufflers

Single Chamber-Male
Conn Size	Model Type	Male NPT	Dimensions		Replacement Element
Conn Size	Model Type	Item Number	Diameter	Length	Replacement Element
1/8	L01	0313001	1.84	6.40	0941001
1/4	L02	0313002	1.84	7.60	0941002
3/8	L00	0313000	2.59	8.75	0941000
1/2	L05	0313005	3.15	10.60	0941005
3/4	L07	0313007	3.40	14.25	0941007
1	L10	0313010	3.90	15.50	0941010
1-1/4	L12	0313012	3.90	15.50	0941012
1-1/2	L15	0313015	5.25	20.40	0941015
2	L20	0313020	5.25	25.30	0941020

减振器消音器Damper Mufflers

Single Chamber-Male				Dimensions
Conn Size	Model Type	Male NPT	Male BSPT	Diamter	Length	Replacement Element
Conn Size	Model Type	Item Number	Item Number	Diamter	Length	Replacement Element
1/8	D01	0374001	0324001	1.84	3.12	0911001
1/4	D02	0374002	0324002	1.84	4.37	0911002
3/8	D00	0374000	0324000	2.59	5.12	0911000
1/2	D05	0374005	0324005	3.15	6.00	0911005
3/4	D07	0374007	0324007	3.40	7.18	0911007
1	D10	0374010	0324010	3.90	8.75	0911010
1-1/4	D12	0374012	0324012	3.90	8.75	0911012
1-1/2	D15	0374015	0324015	5.25	13.56	0911015
2	D20	0374020	0324020	5.25	18.87	0911020
